EXTERNAL RIBBON CONTROL ADJUSTMENTS

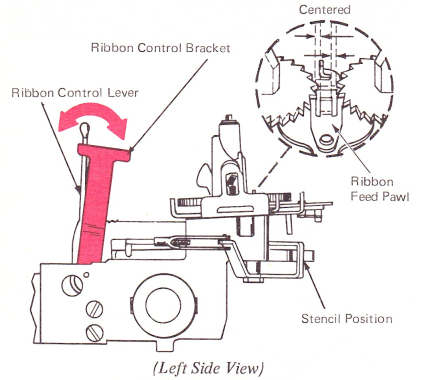

1. Ribbon Control Bracket — With the control lever in the stencil position, adjust the control bracket so the ribbon feed pawl is centered between the two feed ratchets for the full movement of the feed plate assembly.

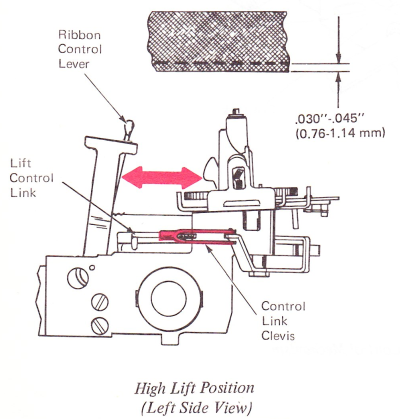

2. Ribbon Lift Control Link — With the ribbon control lever in the red position, adjust the control link clevis so the underscore will strike the ribbon .030”-.045” (0.76-1.14 mm) from the bottom edge.
