COVERS ADJUSTMENTS

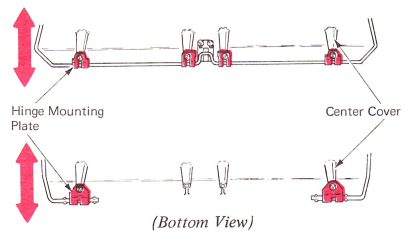

1. Top Cover Hinge — The top cover hinge should be adjusted so the bend of the top cover matches the bend of the center cover. Position the hinge mounting plate front to rear to get this condition.

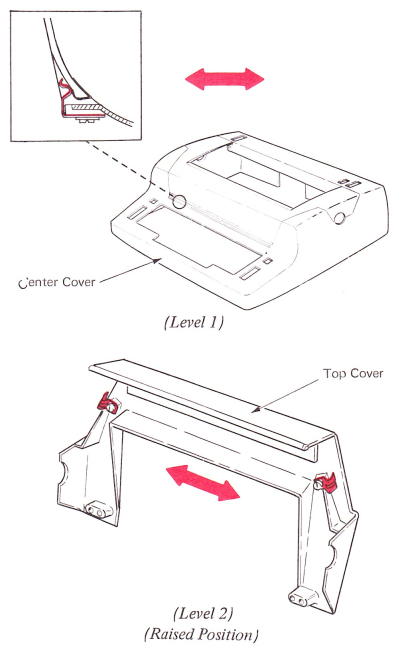

2. Top Cover Latches — Form the Level 1 latches front to rear and adjust the Level 2 latches left to right so the top cover is latched tightly in the closed position.

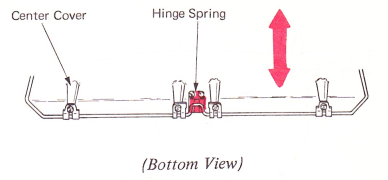

3. Hinge Spring (Level 1 Only) — The hinge spring should be positioned front to rear so the top cover hinge is held in the open position.

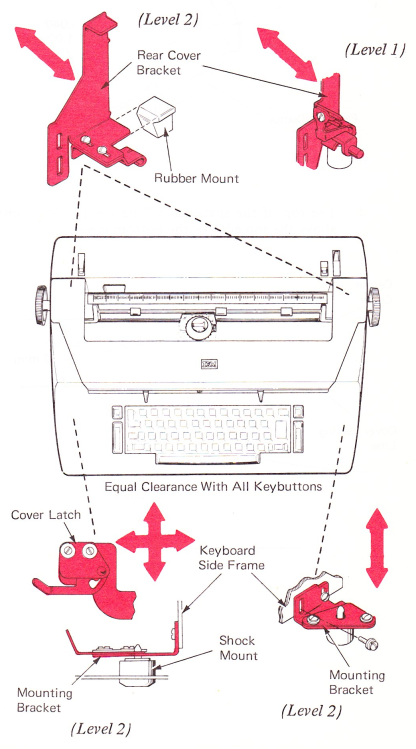

4. Cover Mounts — Adjust the cover mounting brackets so the machine will be positioned in the covers and the following requirements are met:



a. All of the openings for the keybuttons will have equal clearance on each side.

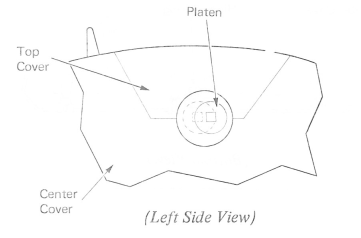

b. The platen will clear the covers with the copy lever operated to the far front and rear position.



c. The clearance between the paper guide and the deflector will be .020”-.040” (0.51-1.02 mm).

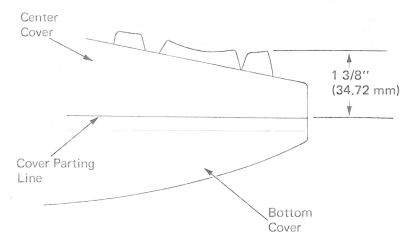

d. The top of the spacebar will be 1 3/8” (34.9 mm) above the top edge of the bottom cover.
