DEAD KEY DISCONNECT ADJUSTMENTS

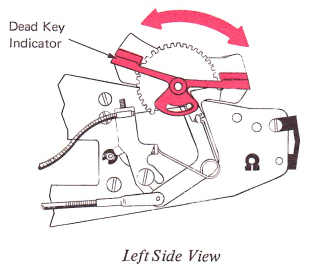

I. Indicator — Adjust the indicator to match the angle of the tab set and clear button.



2. Front Cable Clamp — Adjust the cable cover so that the first two loops of the cover extend past the edge of the clamp.

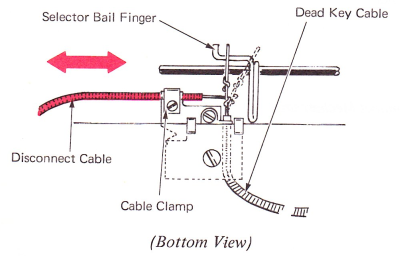

3. Rear Cable Clamp — With the control wheel rotated away from the operator, adjust the cable cover left to right so that the dead key cable is centered on the dead key bail finger. With the control cable rotated toward the operator, the disconnect cable should push the dead key cable away from the working surface of the selector bail finger.
