DEAD KEY ADJUSTMENTS

1. Trigger Link — With the mode actuating bellcrank released, adjust the trigger link clevis so that the working surface of the trigger clears the escapement torque bar by .020”-040” (0.51-1.02 mm).

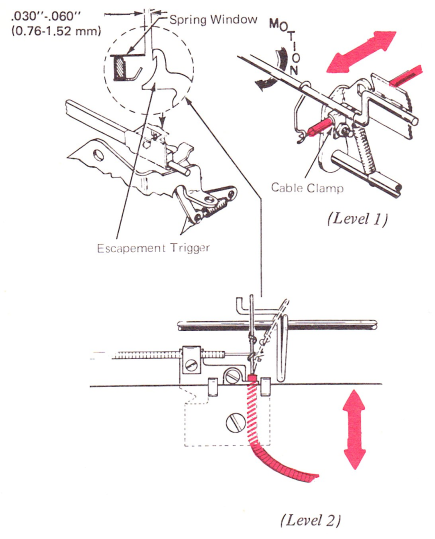

2. Rear Cable Clamp (Level 1) — Adjust the cable cover under the clamp for .485”-.565” (12.32-14.35 mm) movement of the cable when a dead key position is operated.



Level 2 — Adjust cable sheath to be flush with rear edge of rear cable clamp to get .485”-.565” (12.32-14.35 mm) movement of cable when a dead key position is operated.





3. Front Cable Clamp — Adjust the cable cover under the clamp so that the escapement trigger is pulled .030”-.060” (0.76-1.52 mm) past the spring window.



NOTE: With the dead key mechanism installed on a correcting “Selectric,” be sure to maintain .005”-.020” (0.13-0.51 mm) clearance between the working surface of the trigger and the escapement torque bar lug with the mode actuating bellcrank released.
