Navigation: Homepage > Troubleshooting The Selectric > Pictures
87

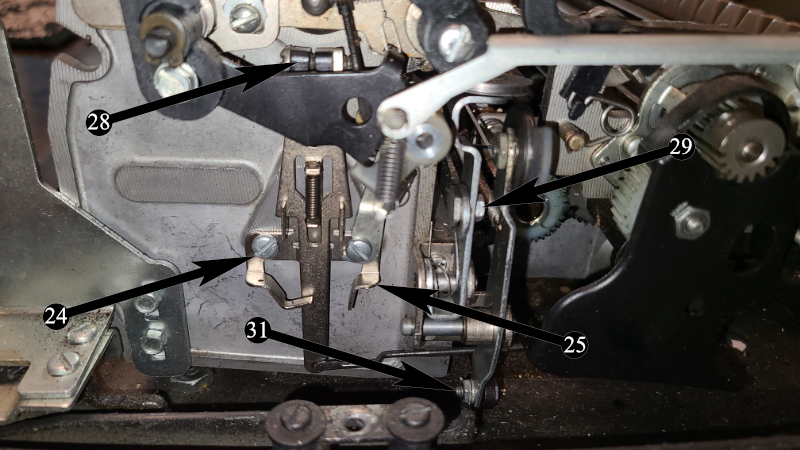

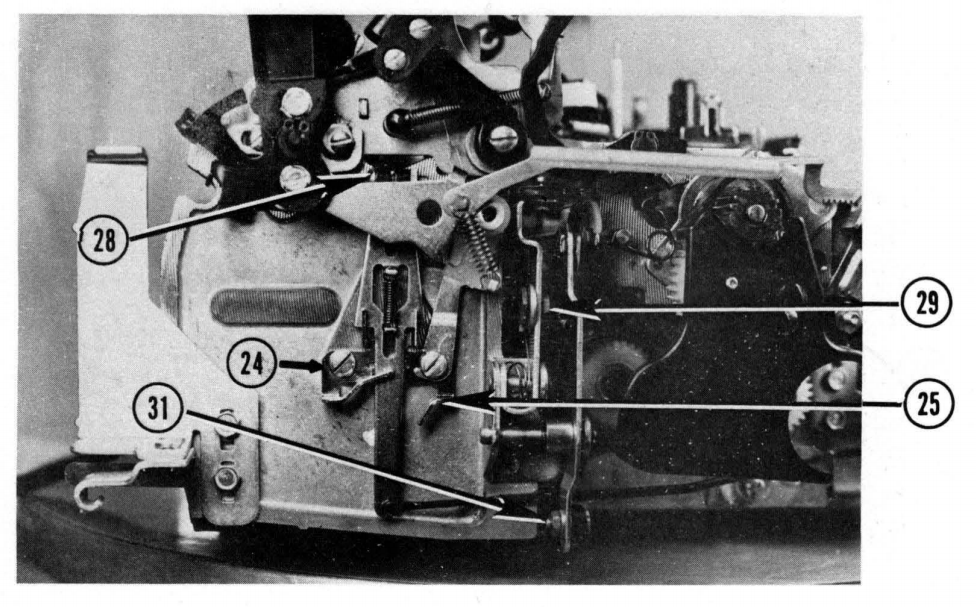

Figure 87
24. Tab set/ clear bracket
25. Tab set and clear adjustable limits
28. Tab set/ clear bellcrank
29. Tilt link and adjusting screw
31. Rotate arm adjusting screw.
