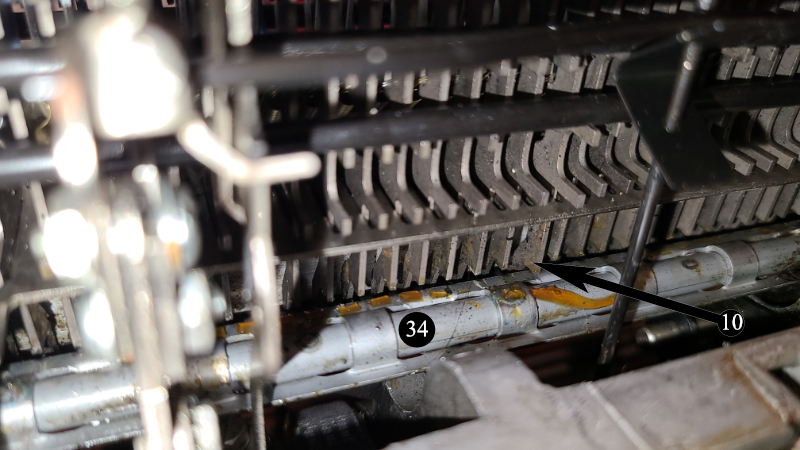

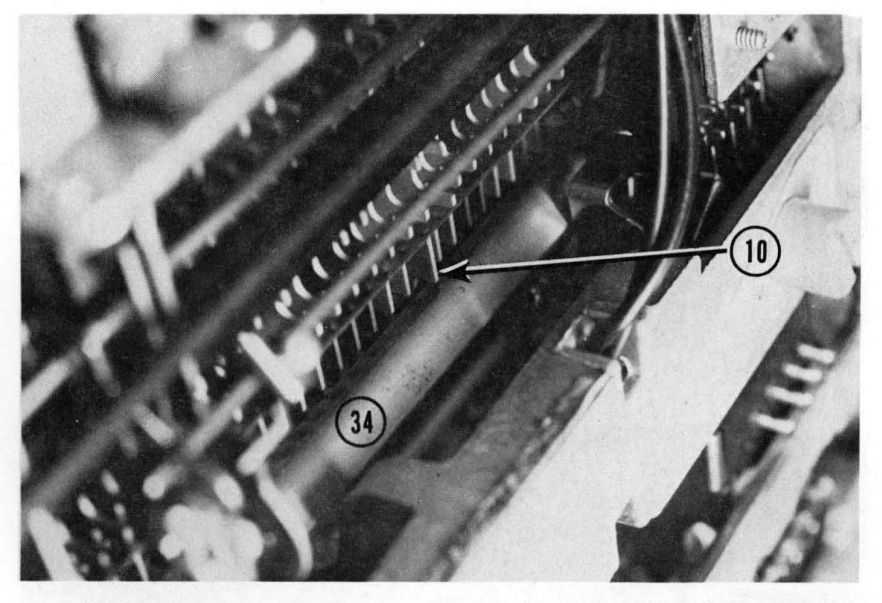

Figure 55

Shown is a latched down interposer (10) and the filter shaft (34).

The adjustable clearance between the filter shaft and a latched down

interposer is approximately .015". When the filter shaft rotates it

contacts the interposer.
