40

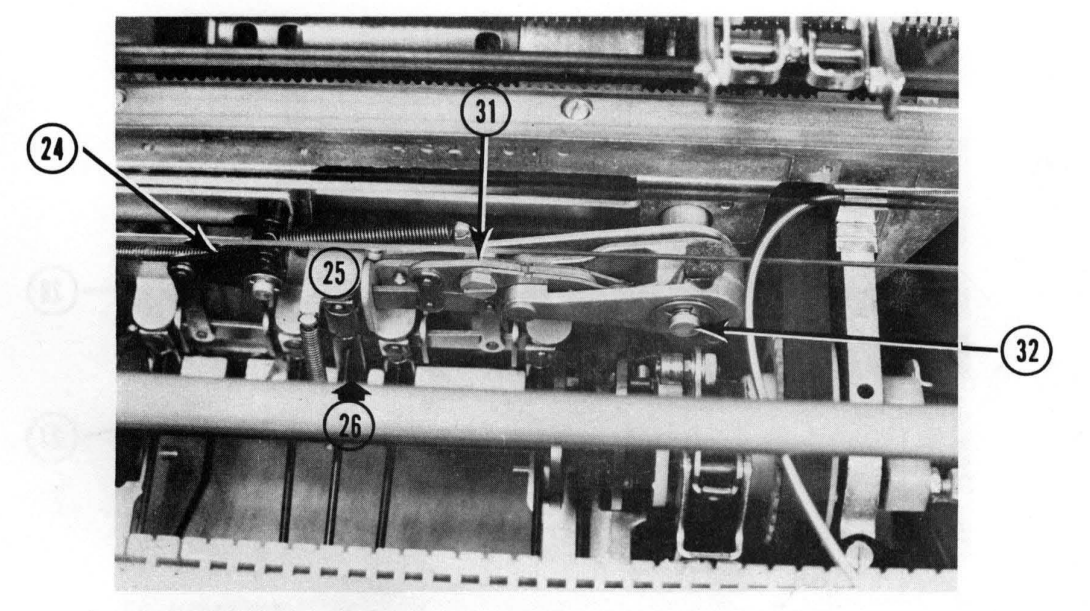

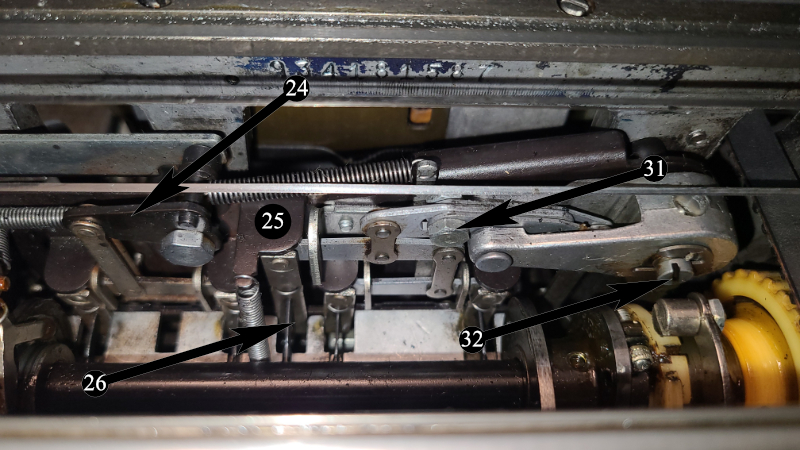

Figure 40
24. Tilt bellcrank
25. Latch stop pads
26. Selector latches
31. Balance arm and locking screw
32. Rotate bellcrank pivot stud
