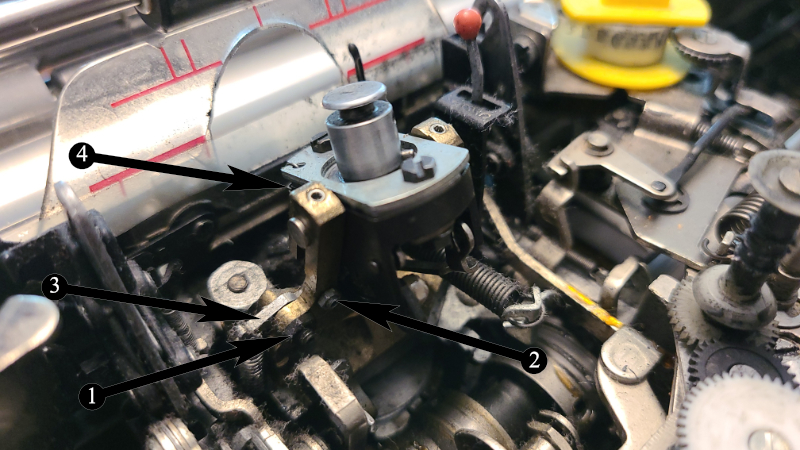

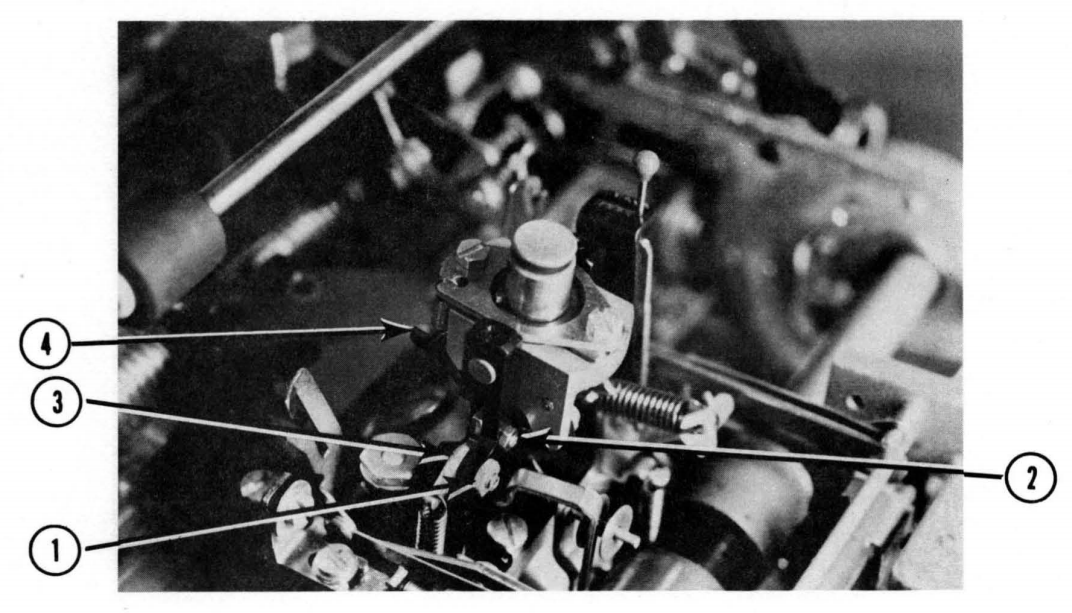

Figure 37

Check for binds in the rotate and tilt detents by rotating the machine,

slowly, with the turning wheel while observing detent entry and exit.

1 & 2. Tilt detent adjusting screws

3. Tilt detent

4. Rotate detent and spring.
