20

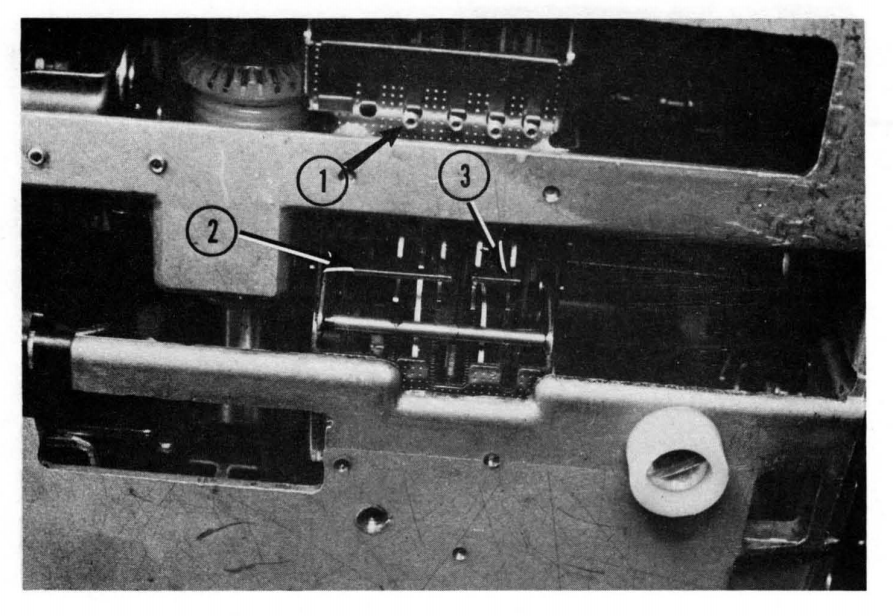

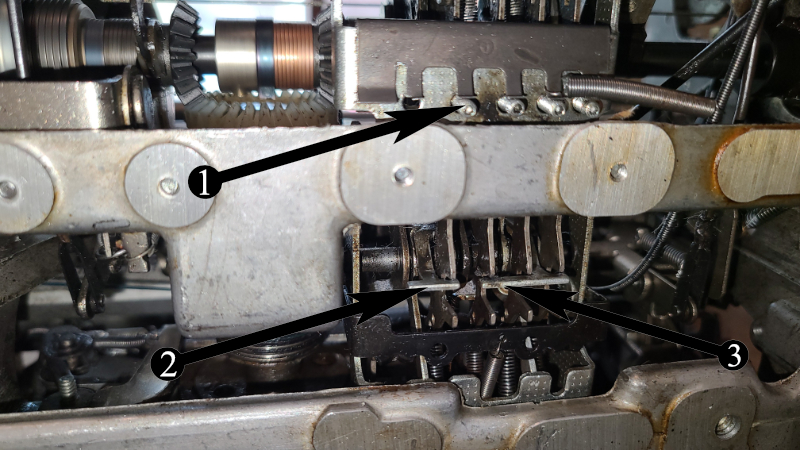

Figure 20
1. Adjustment screw for spacebar latch & etc.
2. Clutch release arm for spacebar-backspace.
3. Clutch release arm for index carrier return
