133

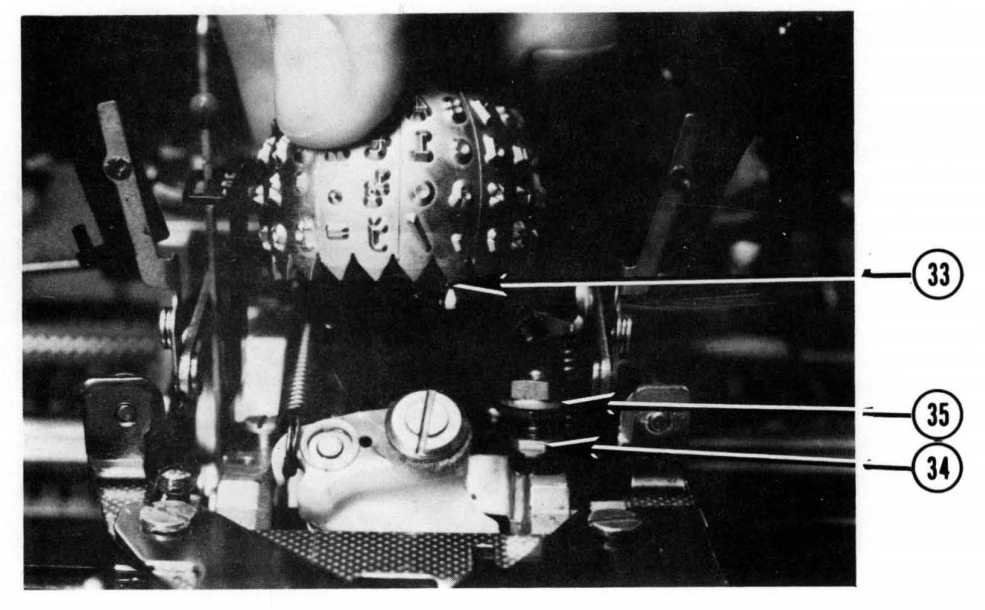

Figure 133
33. The clearance between the rotate detent and element is called skirt
clearance - skirt clearance should be approximately .025".
34. Locking nut 35. Adjusting nut
